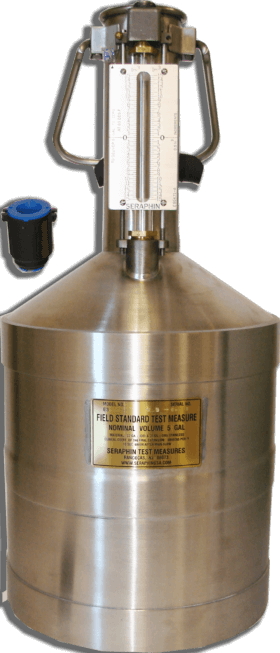

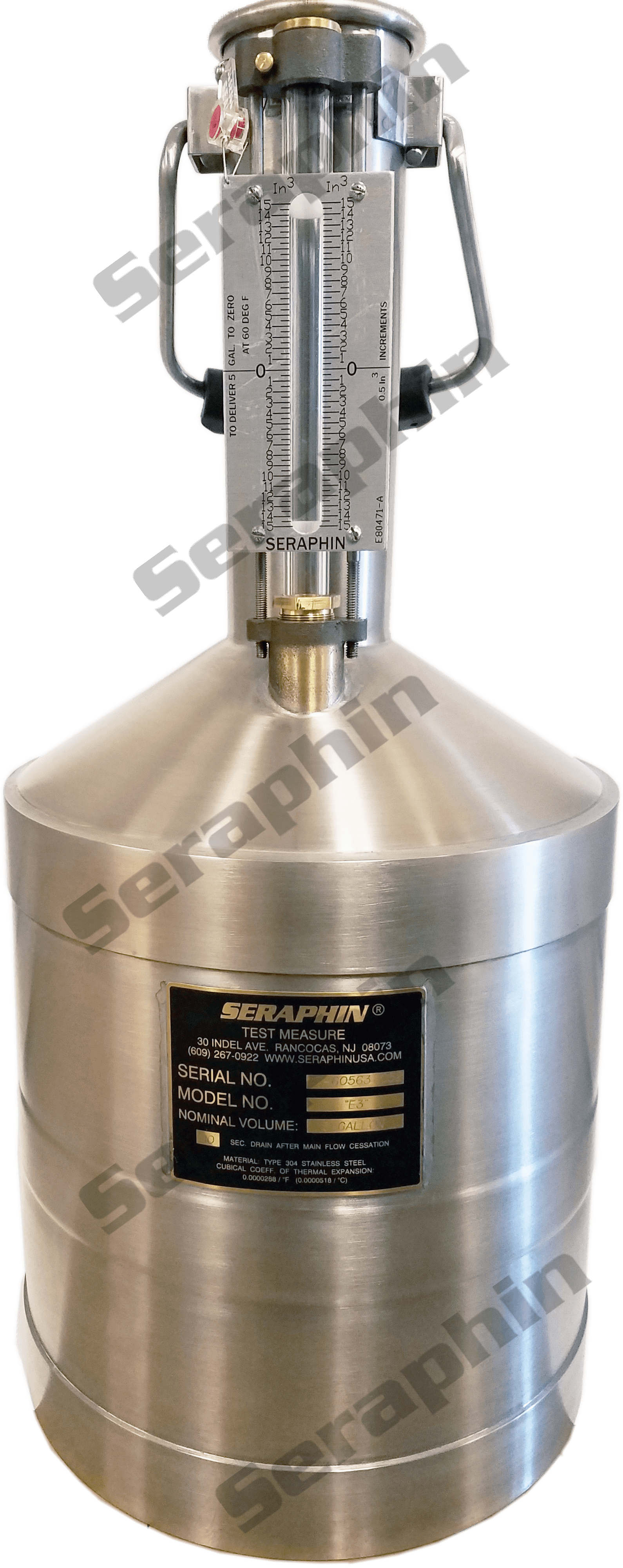

Item #EESS0005GB — 5 Gallon Stainless Steel Test Measure
Product Downloads
$1,024.00

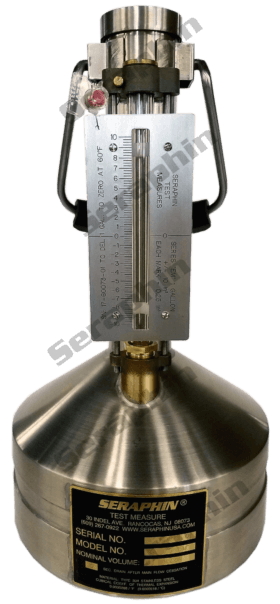

Seraphin® typically stocks 5 and 1-Gallon, 20, 10
and 5-Liter test measures. The scale resolutions of
0.25 cubic inches / 10 or 5 millimeters.
Other capacity test measures including Imperial Gallons are
available and are custom fabricated. Call for details.
363 in stock (can be backordered)
You may also like…
Product Specifications
| Construction | Built to OIML R-120, N.I.S.T. Handbook 105-3 Standards and API Manual of Petroleum Measurement Standards Chapter 4 |
|---|---|
| Material | Type 304 Stainless Steel |
| Bottom | Concave and of adequate thickness to prevent distortion when filled. |
| Calibration Type | Factory CALIBRATION by standards traceable to National Institute of Standards and Technology |
| Design | Reinforcing bands to prevent distortion of prover when full with liquid and when being transported. |
| Gauge Assembly | Equipped with a (liquid -level) gauge tube mounted on the side of the neck |
| Grip | Rubber grip on test measure handle |
| Nominal Capacity | 5 Gallon - Calibrated "to deliver" at 60 Deg F |
| Nominal Diameter | 11 in |
| Nominal Height | 26 in |
| Required Scale Range | ± 15 cubic inches. The gauge scale shall be graduated both above and below the nominal capacity graduation by an amount not less than 1.5 % of the prover volume |
| Scale Resolution | 0.5 CUBIC INCHES |
| Weight Dry | 15 LBS. |
| Tolerance | 0.02% Scale Accuracy |
| Volume Indication | ALUMINUM GRADUATED SCALE |
Applications
RETAIL MOTOR FUEL PUMP CALIBRATION
