Item #E300350 — LPG Trailer With 100 Gallon and 25 Gallon Prover
Overview

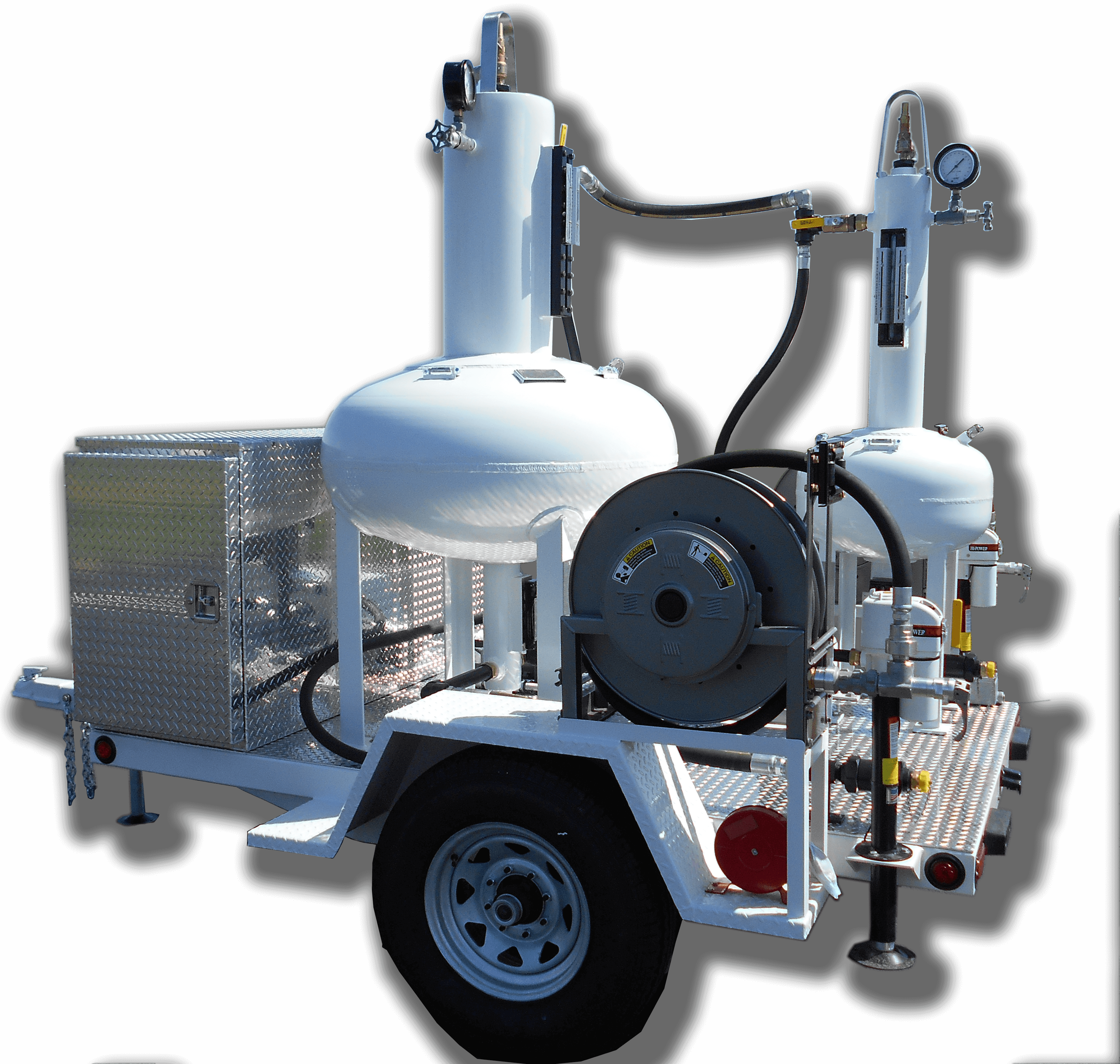

- (1) LPG MOBILE CALIBRATION TRAILER DESIGNED FOR VERIFICATION AND CALIBRATION OF RETAIL AND COMMERCIAL METERS USED FOR
LPG SALES. - SYSTEM IS DESIGNED TO PUMP FROM THE LPG METER BEING TESTED INTO ONE OF TWO LPG PROVERS INSTALLED ON THE TRAILER VIA THE
INSTALLED LPG PUMP FOR MEASUREMENT, AND THEN USING THE SAME PUMP, RETURN THE LPG PRODUCT BACK TO THE DEVICE SYSTEM
BEING PROVED. - THE CALIBRATION TRAILER IS A FULLY CONTAINED DEVICE, DOT COMPLIANT, AND MEETS ALL NIST 105-4 AND ASME SECTION VIII DIV. 1
PRESSURE VESSEL CODE REQUIREMENTS. THE ONLY ADDITIONAL REQUIREMENTS ARE AN ADEQUATE TOW VEHICLE, (1/2-TON OR LARGER
TRUCK IS RECOMMENDED), 110VAC/20AMP POWER FOR THE PUMP, (AT LPG POINT-OF-SALE LOCATION), AND A METER WITH WHICH TO
PROVE.
Product Specifications
| PROVER SPECIFICATIONS: | •(1) 100 US GALLON SERIES "K" (WET BOTTOM) LPG PROVER •(1) 25 US GALLON SERIES "K" (WET BOTTOM) LPG PROVER NOMINAL CAPACITY: • TO DELIVER 100 US GALLONS (USG) AT 60°F & 100-PSI • TO DELIVER 25 US GALLONS (USG) AT 60°F & 100-PSI CALIBRATION: • BY LABORATORY TRACEABLE TO NIST (NATIONAL INSTITUTE OF STANDARDS AND TECHNOLOGY) • INCLUDES COMPLETE PRESSURE & TEMPERATURE CORRECTION TABLES • BUILT TO NIST HANDBOOK 105-4, STANDARDS FOR LPG AND ANHYDROUS AMMONIA VOLUMETRIC PROVERS (2010), AND CONSTRUCTED IN ACCORDANCE WITH ASME SECTION VIII DIV. 1 PRESSURE VESSEL CODE • REGISTERED WITH NATIONAL BOARD OF BOILER & PRESSURE VESSEL INSPECTORS (ANSI ORGANIZATION) MATERIAL: • TYPE 304 STAINLESS STEEL ASME DATA PLATE INCLUDING: •NATIONAL BOARD REGISTRATION NUMBER • NATIONAL BOARD STAMP • "U" STAMP • MINIMUM & MAXIMUM DESIGN METAL TEMPERATURE (MDMT) • MAXIMUM ALLOWABLE WORKING PRESSURE (MAWP) MANUFACTURES DATA PLATE INCLUDING: • NOMINAL VOLUME • MANUFACTURER NAME & ADDRESS • MATERIAL ID • MATERIAL THICKNESS • SERIAL NUMBER • CUBICAL COEFFICIENT OF THERMAL EXPANSION • DRAIN TIME AFTER MAIN FLOW CESSATION UPPER NECK ALUMINUM SCALE PLATES INCLUDE: • SERIAL NUMBER • NOMINAL VOLUME • REFERENCE TEMPERATURE AND PRESSURE FOR CALIBRATED VOLUME • EXPLANATION OF GRADUATIONS 100 USG SCALE: • +/- 470 IN3 WITH 10 IN3 RESOLUTION ON LEFT SCALE PLATE • +/- 2 USG WITH 0.05 USG RESOLUTION ON RIGHT SCALE PLATE 25 USG SCALE: • +/- 116 IN3 WITH 2 IN3 RESOLUTION ON LEFT SCALE PLATE • +/- 0.5 USG WITH 0.01 USG RESOLUTION ON RIGHT SCALE PLATE LOWER NECK ALUMINUM SCALE PLATES INCLUDE: • BOTTOM "ZERO" INDICATION • (4) 1-1/4" FULL-PORT APOLLO BALL-VALVES RATED FOR LPG SERVICE • STEEL WITH TEFLON® SEALS & CHROME PLATED BALL SURFACE • USED TO CONTROL FILLING AND DRAINING OF PROVERS • (2) 1-1/4" FULL-PORT APOLLO BALL-VALVES RATED FOR LPG SERVICE • BRONZE WITH TEFLON® SEALS & CHROME PLATED BALL SURFACE • CONTROLS VAPOR FLOW FROM PROVERS TO VAPOR-RETURN HOSE REEL MISCELLANEOUS • (2) 304 STAINLESS STEEL THERMOMETER WELL (ONE FOR EACH PROVER) • (2) 4-1/2" ANALOG PRESSURE GAUGE (ONE FOR EACH PROVER) • 0-300-PSI • 1-PSI RESOLUTION • NIST TRACEABLE CALIBRATION • NON-ADJUSTABLE 304 STAINLESS STEEL BOLT-DOWN LEGS • (2) PRESSURE-RELIEF VALVES • (1) FOR EACH PROVER • CALIBRATED AT 250-PSI • (6) EXCESS-FLOW VALVES (CATASTROPHIC FAILURE VALVES) • (3) FOR EACH PROVER • VALVES AUTOMATICALLY SHUT IF A HOSE, PIPE, OR FITTING FAILS WHILE UNDER PRESSURE • IMRON® FUEL RESISTANT PAINT • FLEET WHITE TO THE REDUCE INFLUENCE OF SOLAR HEATING ON CALIBRATIONS |
|---|---|
| TRAILER SPECIFICATIONS: | OVERALL DIMENSIONS: • 148" LONG X 84" WIDE X 96" TALL DECK DIMENSIONS: • 103" LONG X 60" WIDE (1) AXLE: • HEAVY DUTY TORFLEX • SINGLE, 6000LBS. • ELECTRICALLY ACTUATED DRUM BRAKES (3) WHEELS AND TIRES (2 FOR THE AXLE, 1 SPARE): • WHEELS (16" X 6") • FULLY GALVANIZED STEEL WHEELS FOR SUPERIOR CORROSION RESISTANCE TIRES (STEEL BELTED RADIAL PLY) • HEAVY DUTY LONG RANGE "E" • 3525 LBS CAPACITY EACH • ST235/80R16 (1) COUPLER: • STANDARD 2" BALL-TYPE COUPLER • (2) FEDERALLY MANDATED SAFETY CHANIS LIGHTING: • WATER-PROOF LED LIGHTING FOR EXCEPTIONAL VISIBILITY AND LONGEVITY • MEETS OR EXCEEDS NHTSA & DOT LIGHTING REQUIREMENTS FOR TRAILERS CONSTRUCTION MATERIAL: • 4" X 2" X 3/16" THICK STEEL BOXED TUBING FOR THE MAIN FRAME • OFFERS SUPERIOR STRENGTH AND RIGIDITY AS COMPARED TO STANDARD "C" CHANNEL • 4" X 2" X 3/16" AND 10" WIDE HEAVY CHANNEL FOR CROSS-BRACES AND MOUNTING POINTS FOR PROVERS • STEEL DIAMOND PLATE FENDERS • 3/16" THICK POLISHED ALUMINUM DIAMOND PLATE DECK ON THE ENTIRE WORKING AREA • EXCELLENT TRACTION AND CORROSION RESISTANCE (3) JACKS: • 3500LBS. CAPACITY ELECTRIC JACKS • (1) ON THE TONGUE, (2) AT THE REAR • PROVIDE EASY AND PRECISE LEVELING OF THE CALIBRATION TRAILER WIRING: • ALL WIRING IS TUCKED UP AND OUT OF THE WAY WITH WEATHER PROOF CONNECTIONS • ALL LIGHTS CONVERGE AT A CENTRALIZED "J" BOX FOR EASY ACCESS AND MAINTENANCE PAINT: • THE ENTIRE TRAILER STRUCTURE IS POWDER COATED • THERMOSETTING, ZINC-RICH EPOXY AND ARCHITECTURAL GRADE POLYESTER • FUEL AND CHEMICAL RESISTANT • FLEET WHITE |
| PUMPING SYSTEM SPECIFICATIONS: | CORKEN TURBINE PUMP: • MODEL DS-12CD-2A • 1-1/2" NPT INLET, 1" NPT OUTLET • BALDOR MOTOR • EXPLOSION PROOF • 1-1/2-HP, 1 PH, 110VAC, 3750-RPM •TURBINE DESIGN MEANS NO WEARABLE PARTS AS WITH OTHER "BLADE-TYPE" PUMPS •FREE SPINNING DESIGN REDUCES ELECTRICAL LOAD ON THE MOTOR, WHICH REDUCES •THE CHANCE OF OVER-LOADING BREAKERS ON START-UP •(1) 1" NPT CORKEN BY-PASS VALVE • SET TO 120 PSI DIFFERENTIAL • PREVENTS PUMP DAMAGE IF PUMP IS "DEAD-HEADED" •ALL PUMP WIRING INSTALLED IN ¾" GALVANIZED STEEL CONDUIT • EXPLOSION PROOF PUMP SWITCH CONVENIENTLY LOCATED AT THE REAR WORKING AREA OF THE TRAILER • ALL PLUMBING ON TRAILER IS SCHEDULE 80 1-1/4" STEEL, 3000LBS THREADED FITTINGS, OR HI-PRESSURE LPG APPROVED HOSE. (2) HOSE REELS: • HANNAY SPRING-REWIND REELS; (1) FOR LIQUID AND (1) FOR VAPOR TRANSFER EACH INCLUDES: • 1" DIA. X 30' OF LPG APPROVED HOSE ON EACH REEL • 1" NPT STAINLESS STEEL FULL-CIRCLE SWIVEL • 1" SQUIBB TAYLOR HOSE-END VALVE • IRON BODY • MINIMUM BLEED • ALUMINUM HANDLE (1) ELECTRICAL REWIND REEL: • HANNAY SPRING-REWIND REELS; (1) FOR POWER CABLE OF LPG TRANSFER PUMP INCLUDES: • 50' OF AWG 12-3 SOW POWER CABLE • HEAVY DUTY 20AMP PLUG, (NEMA 15-20 STYLE) • ARK-TITE HAZARDOUS LOCATION PLUG TO CONNECT LPG TRANSFER PUMP TO ELECTRIC REWIND-REEL |
| OTHER SYSTEM SPECIFICATIONS: | (1) POLISHED ALUMIUM DIAMOND PLATE ENCLOSURE: • 60" WIDE X 30" DEEP X 34" TALL • (2) FULL-SIZE DOORS; (1) ON DRIVER'S, AND (1) ON PASSENGER'S SIDE • (2) STAINLESS STEEL LOCKING LATCHES FOR SECURITY • WEATHER-STRIPPING AROUND DOOR JAMB TO REDUCE WATER ENTRY • (2) STAINLESS STEEL DOOR-STAYS HOLD DOORS SAFELY OPEN WHEN SYSTEM IS IN USE • (1) FULL-SIZE SPARE TIRE IS MOUNTED TO ENCLOSURE ON A LOCKABLE STAINLESS STEEL BRACKET • (1) AMEREX FIRE EXTINGUISHER • 10LBS. CLASS B & C • SODIUM BI-CARB • RECHARGEABLE • ANSI/UL 711 & ANSI/UL 299 • -65°F TO 120°F • (1) AMEREX GROUNDING REEL • PROVIDES SAFE DISSIPATION OF STATIC ELECTRICITY • 50' OF CABLE • SPRING-LOADED COPPER CLAMP • MEETS US MIL-SPEC 83420 |
